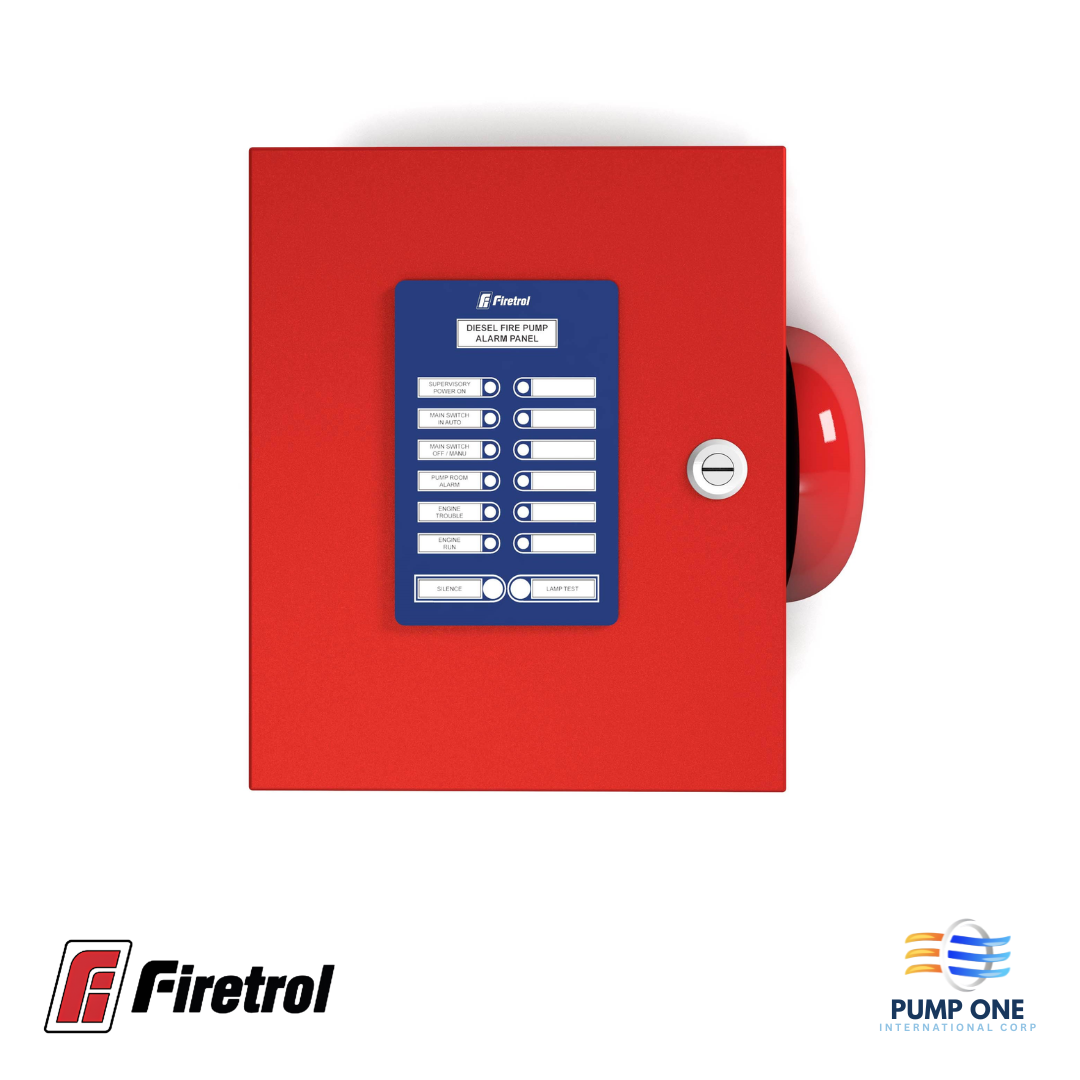

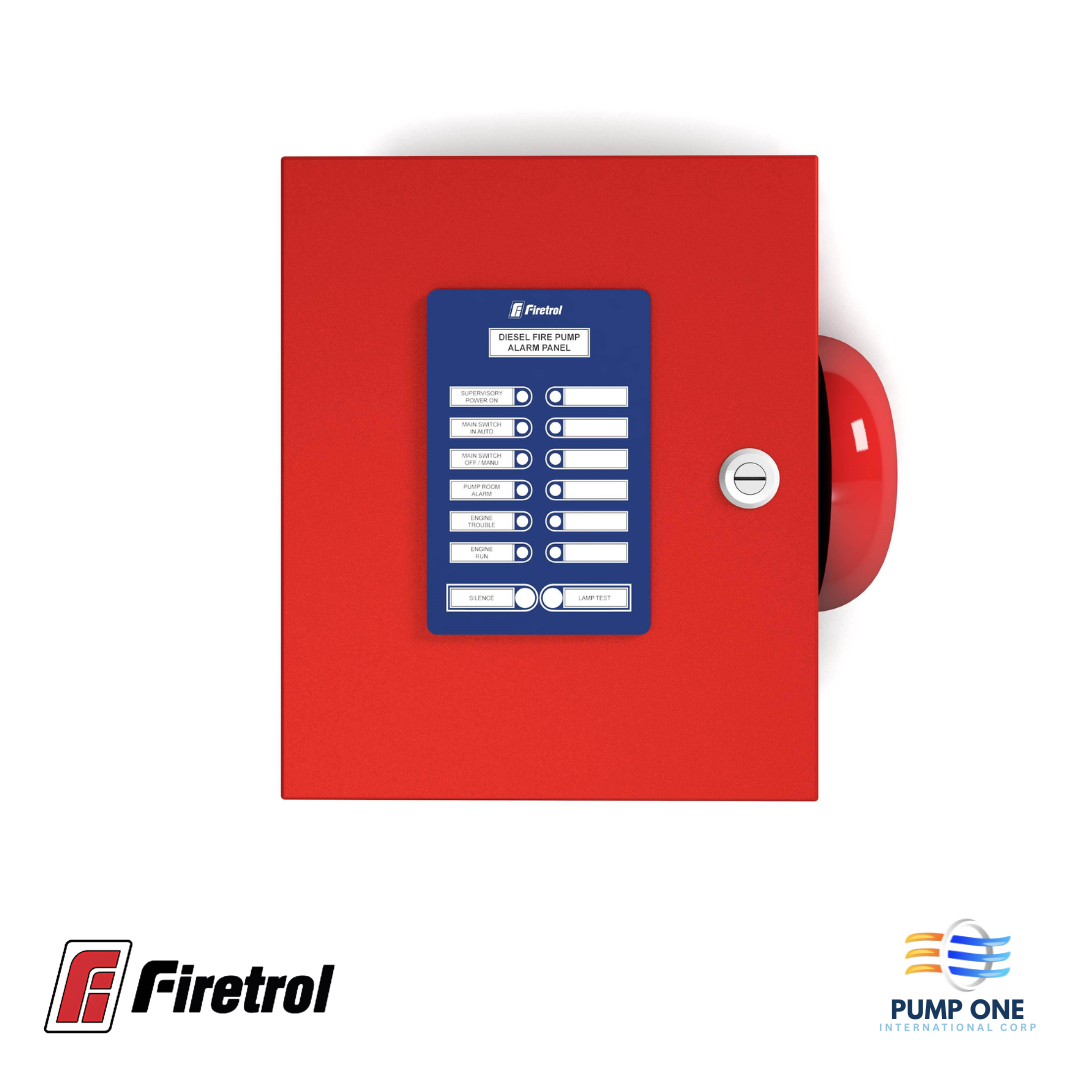

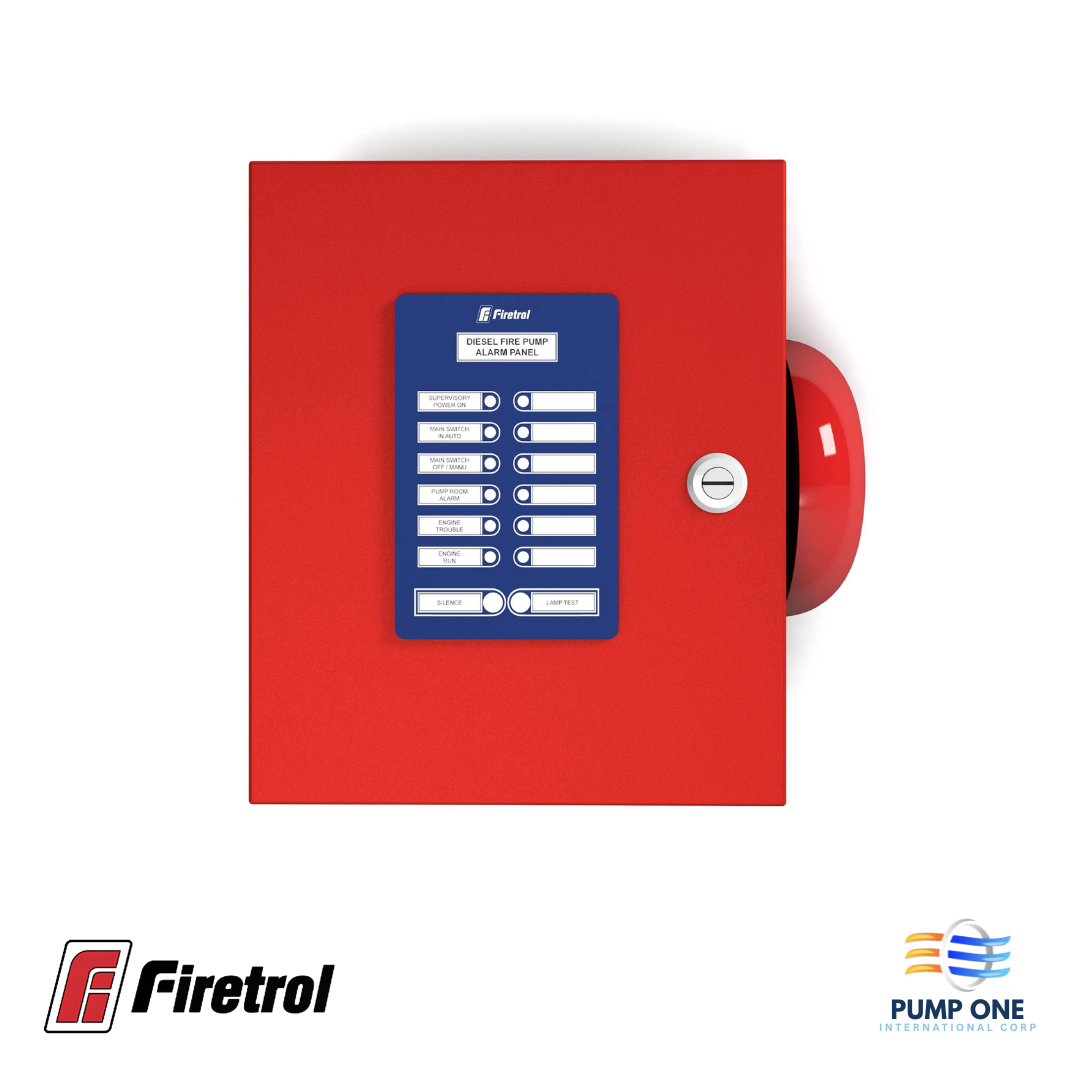

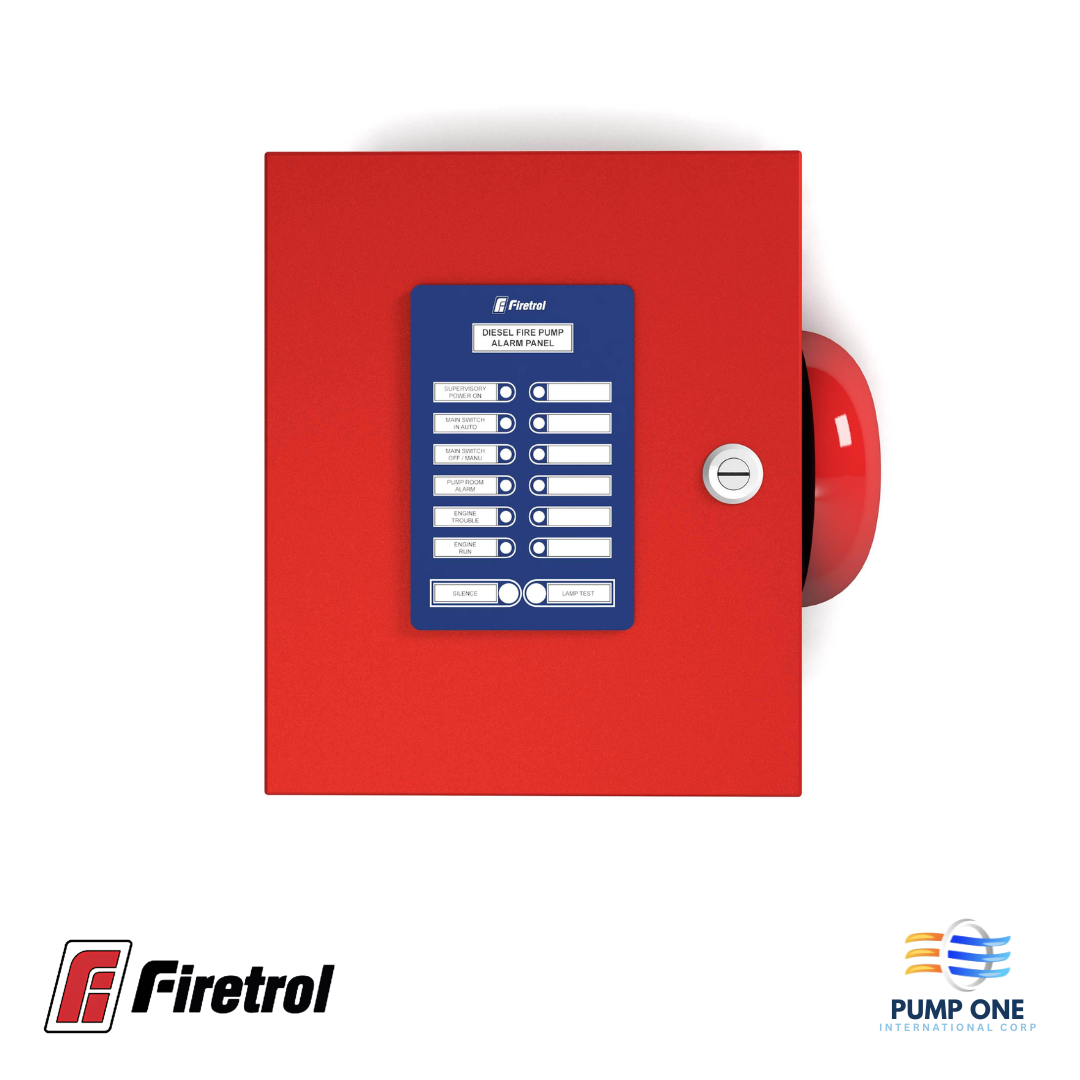

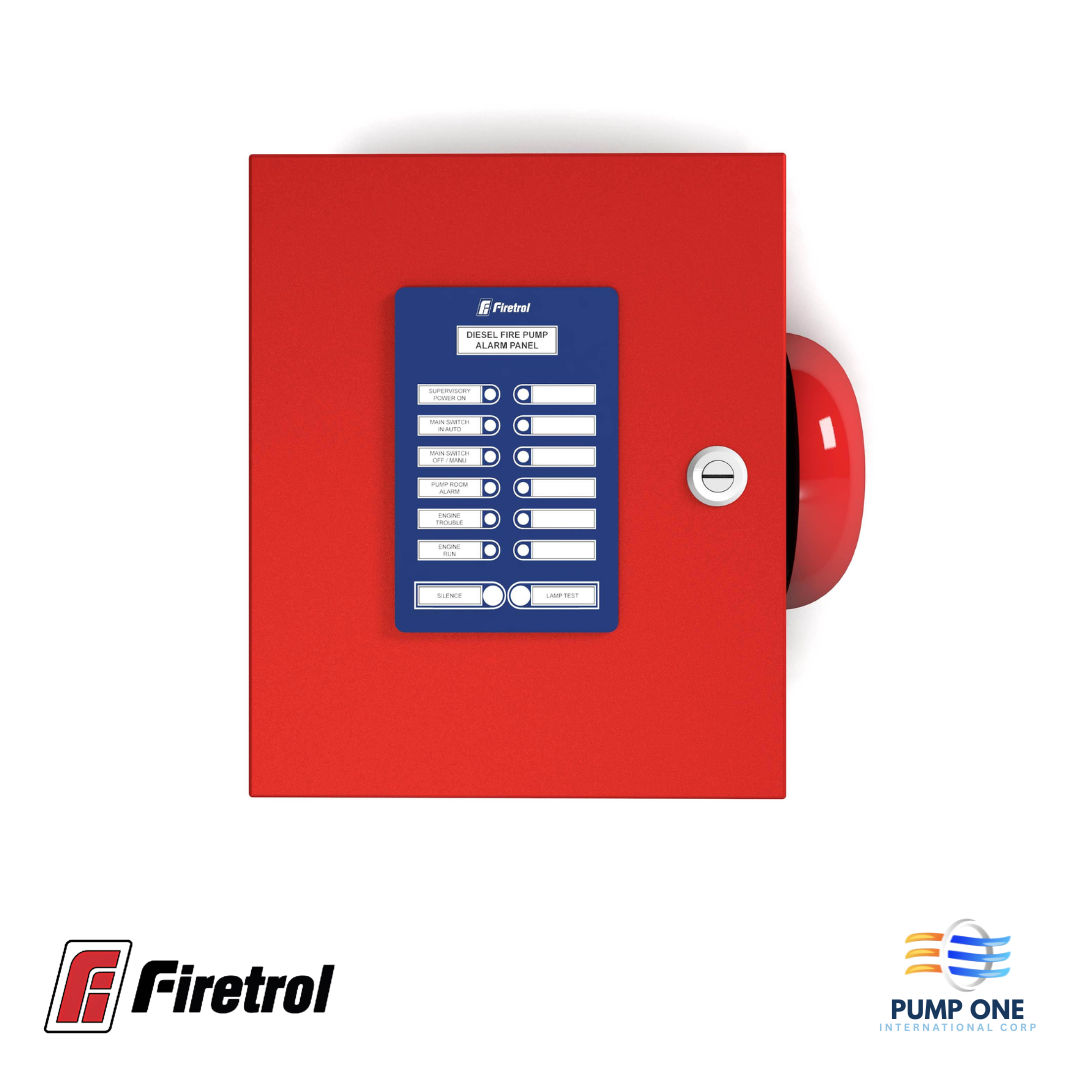

Firetrol FTA200 Alarm Panel

Model: FTA200

Firetrol® FTA200 alarm panels are designed to meet the NFPA 20 specifications requiring a remote alarm panel when the pump house or pump room is not constantly attended. The alarm panel must be installed in a location that is under supervision at all times.

Email Inquiry Call Us

Specifications

Supply Voltage	Model Dependent
Frequency (Hz)	50 / 60 Hz
Compatible Controller Type	Electric Fire Pump Controllers
Number of Alarm Circuits	6
Audible Alarm	Yes
Visual Alarm	Yes
Power On Indicator	Yes
Phase Failure Monitoring	Yes
Phase Reversal Monitoring	Yes
Pump Running Indication	Yes
Motor Trouble Indication	Yes
Pump Room Alarm	Yes
Remote Monitoring	Yes
Listing / Approval	UL Listed & FM Approved
Standard	NFPA 20
Indoor / Outdoor	Indoor
Brand Model Series	Firetrol FTA200-A

Product Description

Provides Audible & Visible indication of the following:
• Supervisory Power On
• Power/Phase Failure
• Phase Reversal
• Pump Room Alarm
• Motor Trouble
• Motor Running
