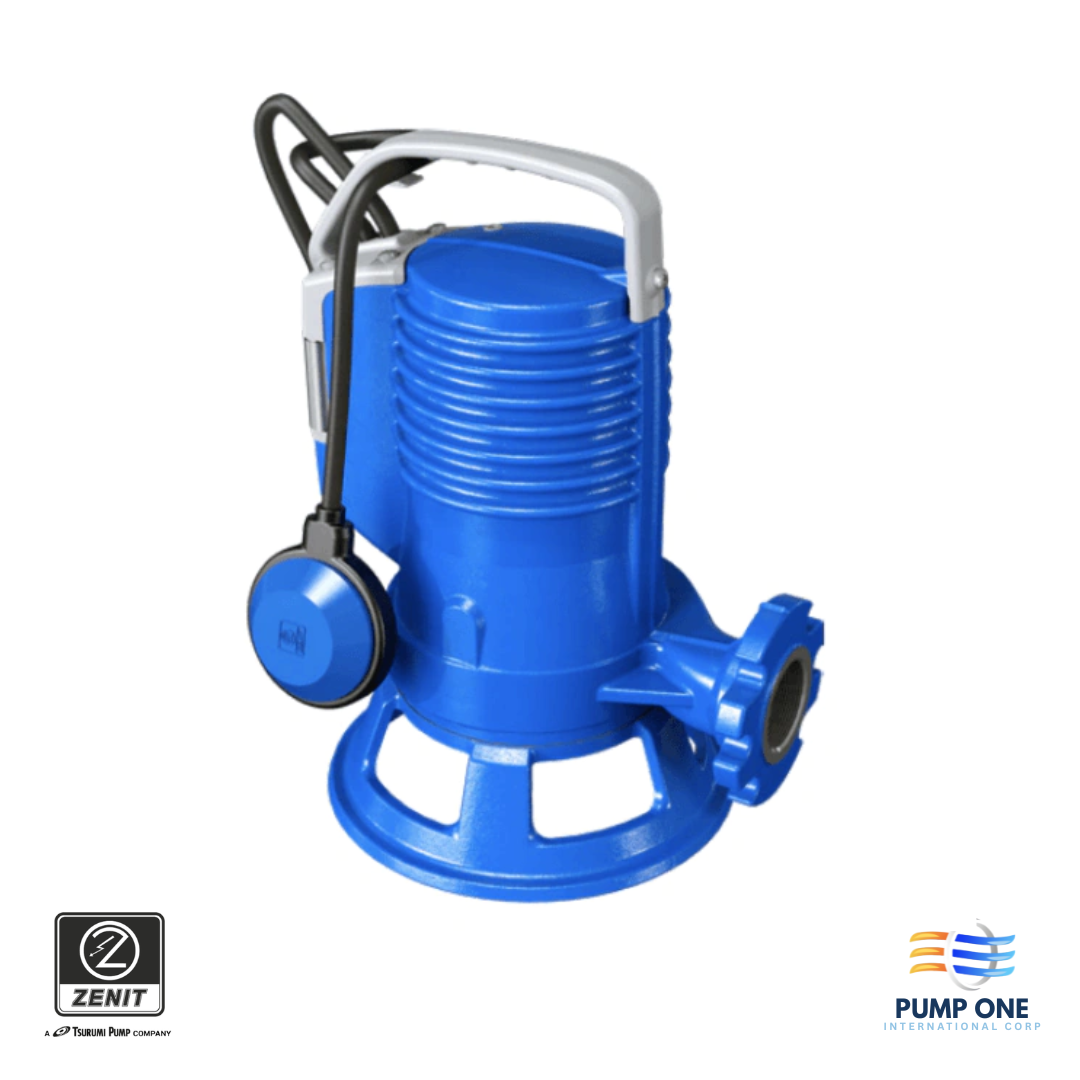

Zenit Blue DG Draga Series Electric Submersible Pump

The Zenit Blue DG Series Electric Submersible Pumps are compact, rugged, and reliable pumps designed for domestic and residential wastewater applications. Featuring a techno-polymer vortex impeller with full free passage, the DG Series efficiently handles sewage and heavily soiled wastewater containing solids. Suitable for permanent installations or emergency dewatering, these pumps are also compatible with blueBOX lifting stations. Every unit undergoes pressurized testing to ensure reliable sealing and long service life.

Email Inquiry Call Us

Specifications

Flow Rate (m³/h)	1 – 28.1
Max Head (m)	Max: 12
Motor Power (kW)	0.30 – 0.74
Voltage (VAC)	220-240
Outlet Diameter (mm)	Min: 40
Max Solid Size (mm)	Max: 40
Float Switch	Optional
Frequency	50/60 Hz

Product Description

Features
• Techno-polymer vortex impeller
• Full free solids passage
• Compact and lightweight design
• Suitable for permanent or portable installations
• Easy maintenance
• High-quality wear-resistant components
• Pressure-tested mechanical seals and cable gland
• Compatible with blueBOX lifting stations
• Optional IECEx certified versions available
